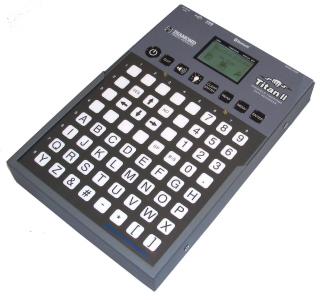

Titan II

Hand Held Timestamp Data Recorder

Titan II- Hand Held Timestamp Data Recorder Discontinued

The Titan II intersection counter/classifier is a multiple study, hand held, programmable intersection turning movement counter with full FHWA and event classifications recording capability.

User definable data keys are easy to program and operate. A complete range of turning movement data and user defined “event” studies are available. In conjunction with the Centurion the Titan II provides Classification and count reporting options.

64 key count and class matrix for one button class
LCD graphic display with icon navigation
USB communication with GPS and flash drive funcationality.

Specifications

SENSOR INPUTS 64 key keypad (8 key menu)
OUTPUT RS232 Serial Port
USB 2.0 Female Port A (shared)
USB 2.0 OTG (On-The-Go) Micro AB port
Bluetooth® Wireless 1.1 Class 2
FIRMWARE Flash upgradable firmware via USB or Bluetooth®.
MEMORY 16MB non-volatile flash (up to 4 million timestamp records)
FILES Unit stores up to 65,000 files in NV flash memory
COMMUNICATION Serial: Direct serial connect at 19200, 115k baud rates
USB: Direct PC connect at maximum of 12 Mbit/sec, Direct Flash Drive connect at 1.5 Mbit/sec, GPS Connect at default 4800
Bluetooth® Wireless: Class 2 – 2.5mW Approx range = 10M, 921K baud Connection, GPS connect at default 4800 Baud
TIMESTAMP RESOLUTION Sensor resolution is performed and stored at 1000th of a second (0.001 sec) 1 Millisecond
DISPLAY 128 x 64 pixel backlit LCD graphic display
POWER Input: USB 5volt charging at 100-500mA
Unit Operation: 3.3V operation with typical power draw, Display on = 12mA, Display off = 38μA
Battery Life: Bluetooth® On = 90 days, Bluetooth® Off = 270 days
SIZE 1 1/2”H x 7”W x 10 1/2”L
WEIGHT 3lbs
ENVIRONMENTAL IP45
TEMP RANGE -40°F (-40°C) to 160°F (72°C)

Hand Held Timestamp Data Recorder

The Titan II intersection counter/classifier is a multiple study, hand held, programmable intersection turning movement counter with full FHWA and event classifications recording capability.

User definable data keys are easy to program and operate. A complete range of turning movement data and user defined “event” studies are available. In conjunction with the Centurion the Titan II provides Classification and count reporting options.
